Product Overview

Our simplified integral hinge eliminates problems of rust, contamination and damage associated with conventional inserted hinge-pins.

  • Container with open lid.Lids lock open for easy filling.
  • Container with lid closed.Lids lock closed for dust free protection of contents.
  • Three containers stacked together.Interlocked stacking ensures stability during transit.
  • Three containers nested together.Containers nest for storage and transport.

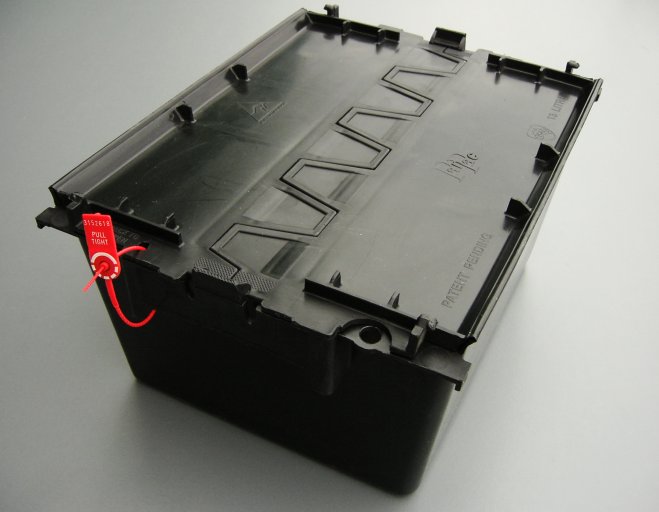

  • Hole for tamper evidence seal.

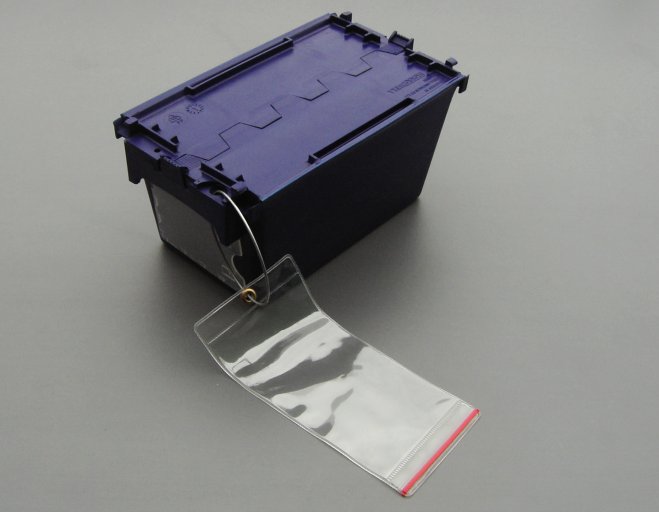

  • Kan-ban Holder.

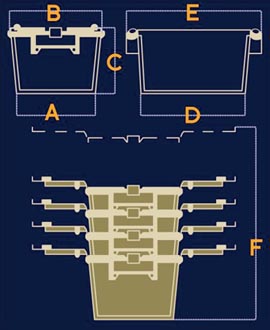

Container Dimensions

Outside Dimensions1.1 litre4 litre13 litre50 litre
A: Width (bottom)129.5mm135mm245mm286mm
B: Width (top)151mm165mm285mm315mm
C: Height95mm145mm200mm288mm
D: Length (bottom)101.5mm235mm310mm462mm
E: Length (top)145mm290mm390mm490mm
F: Stack Height (10 Containers)275mm520mm650mm963mm
Weight of Container164g485g1175g3225g
